Pinch Valves
Does your industry need a sophisticated valve to close or control the flow of abrasive, corrosive, and granular media? You have to look for Pinch valves, which refer to 2/2-way valves as well. Such valves use pressurized air to close or open the valve. When the valve comes in an open position, media may easily pass from its bore while the flexible rubber sleeve present in the inner area of the valve avoids damage to other components and contamination problems.
Pinch valves often have simple designs and include every type of valve that has a flexible elastomer structure to pinch close to cut-off flow. For this, the valve uses the mechanism of fluid pressure. Moreover, these valves follow linear motion or a straight flow path to start, throttle, and stop any media from a system. The valves also work well with many corrosive and abrasive fluids that too less possible friction and turbulence. Other features of Pinch valves are low or lightweight, low maintenance, and need explosion-proof closure of pipelines.
Based on reliability, cost-effectiveness, and easy usability, demand for Pinch valves is consistently increasing in modern industries. In particular, the valves are useful in sterile lines and in places, where you keep product purity at high priority. Other applications include slurries and varieties of granular products. These include carbon, textile fiber, cement, sand, pellets, powder, gravel, cement, sand, chips, and glass fragments. In particular, Pinch valves have many functions in the chemical industry and operate as shut-off or pressure-relief valves in wastewater industries. If this is not enough, modern ceramic industries use these valves with reinforced sleeves of rubber to deal with extreme ceramic flow abrasiveness.
Our professionals at Sandur Fluid Controls Pvt. Ltd. are involved in supplying pinch linear motion valves. If you want specifications, contact us by visiting our website.
Sandur Fluid Controls Pvt. Ltd are a type of valve that directly pinches tubing made of a soft material such as silicone in order to open and close it. Sandur Fluid Controls Pvt. Ltd only wetted material is the tubing, therefore cleanliness of the flow path can be maintained and cross-contamination avoided through exchanging tubing after use. It is also possible to use this valve with slurry which is fluid containing small particles.
Sandur Fluid Controls Pvt. Ltd is one of the best Pinch valves manufacturer, Pinch valves exporter and Pinch valves supplier in all over countires. Our company highly range to manufacturer of this Pinch valves in builky. We are serve this Pinch valves product universally. If you want this product please quote here!
Specification

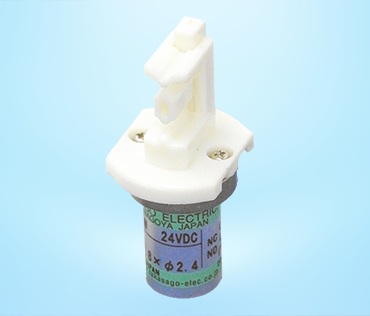

PE Series
FEATURES / CHARACTERISTICS
The PE series is the most miniature pinch valve in Takasago's product range, with an actuator of 14 mm in diameter. This pinch valve has a lineup of N.C. (Normally Closed) type, N.O. (Normally Open) type, and dual type (both N.C. and N.O.). View More >>
| Model Number | PE-0810NC-3 |
|---|---|
| Outer Dimensions | W21 - 39.2 x L26 x H55.1 mm |
| Method | Solenoid |
| Pump Method | Pinch Valve |
| Type | 2-way N.C., 2-way N.O., or 3-way |
| IN Port Pressure | 0 ~ 100 kPa |
| Ambient Temperature Range | 0 ~ 40°C |
| Rated Voltage | 12 or 24 VDC |
| Power Consumption | 2.8 W |
| Operating Duration | Continuous |
| Tube Material | Silicone |
| Tubing Inner Diameter（mm） | 0.8 mm |
| Tubing Outer Diameter（mm） | 2.4 mm |
| Notes | Details such as specifications, etc., may be changed without notice. |

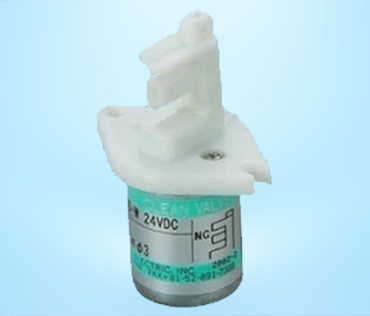

PS Series
FEATURES / CHARACTERISTICS
This PS series is a standard miniature pinch valve for small diameter tubing. There are three types: N.C. (Normally Closed), N.O. (Normally Open), and Dual, which has both an N.O. and N.C. side that operates simultaneously. View More >>
| Method | Solenoid - Pinch Valve |
|---|---|
| Tubing Inner Diameter（mm） | 0.8 - 1.6 mm |
| Tubing Outer Diameter（mm） | 2.4 - 3.2 mm |
| Tubing Material | Silicone or Pharmed® |
| Type | 2-way NC, 2-way NO, or 3-way |
| Operating Pressure Range | 0～150 kPa |
| Rated Voltage | 12 or 24 VDC |
| Power Consumption | 3 W |
| Operating Duration | Continuous |
| Outer Dimensions | 26 x 39.2 x 49.5 mm |
| Ambient Temperature Range | 0～40℃ |

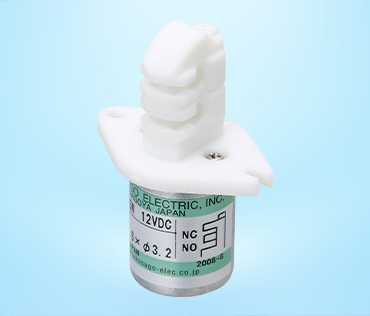

PSK Series
FEATURES / CHARACTERISTICS
The PSK series is the Pinch Valve - PS Series with the tube holding feature. There are three types, which are the N.C. (Normally Closed), N.O. (Normally Open) and Dual which has both an N.O. and N.C. side that are simultaneously operated. View More >>
| Method | Solenoid |
|---|---|
| Tubing Inner Diameter（mm） | 0.8 - 1.6 mm |
| Tubing Outer Diameter（mm） | 2.4 - 3.2 mm |
| Tubing Material | Silicone, Pharmed® |
| Type | 2-way NC, 2-way NO, or 3-way |
| Operating Pressure Range | 0～150 kPa |
| Rated Voltage | 12 or 24 VDC |
| Power Consumption | 3 W |
| Operating Duration | Continuous |
| Outer Dimensions | 26 x 39.2 x 49.5 mm |
| Ambient Temperature Range | 0～40 ℃ |

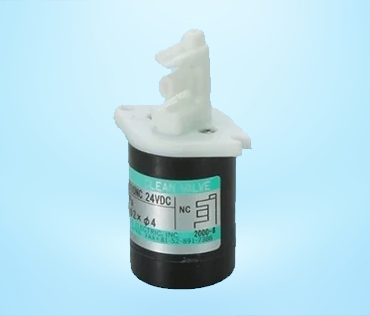

PM Series
FEATURES / CHARACTERISTICS
The PM series is a solenoid pinch valve which supports a wide range of tubing materials such as silicone, PharMed®, and Tygon®. This pinch valve can be freely used as an NC/NO type with a single tube or as a Dual type with two tubes. It can also be configured as a 3-way valve by using a Y-shaped fitting. View More >>
| Method | Solenoid |
|---|---|
| Tubing Inner Diameter（mm） | 0.8 - 1.6 mm |
| Tubing Outer Diameter（mm） | 2.4 - 3.2 mm |
| Tubing Material | Silicone, Pharmed®, Tygon® |
| Type | 2-way NC, 2-way NO, or 3-way |
| Operating Pressure Range | 0～150 kPa |
| Rated Voltage | 12, 24, or 90 VDC |
| 100 VAC | |
| Power Consumption | 4.4 W |
| Operating Duration | Continuous |
| Outer Dimensions | 26 x 40 x 60 mm |
| Ambient Temperature Range | 0～50 ℃ |

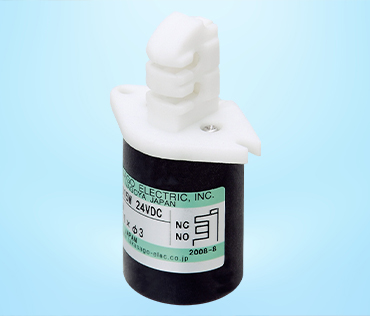

PMK Series
FEATURES / CHARACTERISTICS
This PMK series is a Pinch Valve - PM Series with the tube holding feature. View More >>
| Method | Solenoid |
|---|---|
| Tubing Inner Diameter（mm） | 0.8 - 1.0 mm |
| Tubing Outer Diameter（mm） | 2.4 - 3.0 mm |
| Tubing Material | Silicone, Pharmed®, Tygon |
| Type | 2-way NC, 2-way NO, or 3-way |
| Operating Pressure Range | 0～150 kPa |
| Rated Voltage | 12, 24, or 90 VDC |
| 100 VAC | |
| Power Consumption | 4.4 W |
| Operating Duration | Continuous |
| Outer Dimensions | 26 x 40 x 60 mm |
| Ambient Temperature Range | 0～50 ℃ |

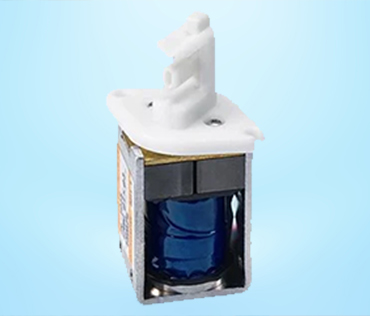

PL Series
FEATURES / CHARACTERISTICS
The PL series is a pinch valve adopting a latching solenoid, which maintains the valve open or closed state through the utilization of a permanent magnet. It contributes to low power consumption, because electricity is consumed only when energized. View More >>
| Method | Latching Solenoid |
|---|---|
| Tubing Inner Diameter（mm） | 0.8 - 3.0 mm |
| Tubing Outer Diameter（mm） | 2.4 - 5.0 mm |
| Tubing Material | Silicone, Pharmed® |
| Type | 2-way or 3-way |
| Operating Pressure Range | 0～150 kPa |
| Rated Voltage | 12 or 24 VDC |
| Power Consumption | 8 W |
| Operating Duration | Intermittent |
| Outer Dimensions | 30.4 x 30.4 x 61.7 mm |
| Ambient Temperature Range | 0～40 ℃ |

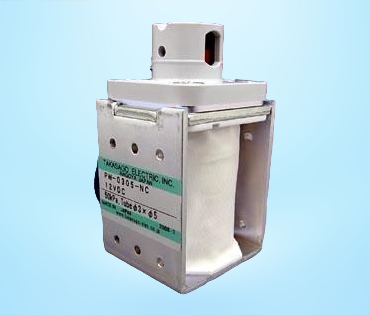

PW Series
FEATURES / CHARACTERISTICS
This is a solenoid pinch valve with an open-framed actuator. This valve has the options of I.D. of 0.8 to 6.0 mm and O.D. of 2.4 or 8.0 mm. View More >>
| Method | Solenoid Pinch Valve |
|---|---|
| Type | 2-way NC, 2-way NO, or 3-way |
| IN Port Pressure | 0 ~ 150 kPa |
| Tubing Inner Diameter (I.D.) |
0.8 - 6.0 mm |
| Tubing Outer Diameter (O.D.) | 2.4 - 8.0 mm |
| Rated Voltage | 3, 12, 24, or 90 VDC |
| 100 VAC | |
| Power Consumption | 2.8 - 7.5 W |
| Operating Duration | Continuous |
| Outer Dimensions | W39.2-40 x L26-36 x H54.4-88.5 mm |
| Tube Material | Silicone |
| Ambient Temperature Range | 0～50℃ |

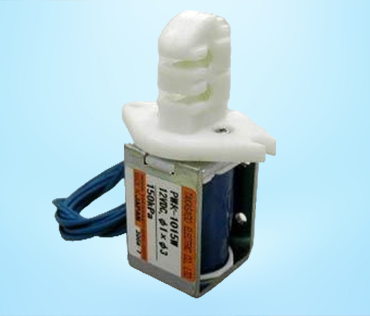

PWK Series
FEATURES / CHARACTERISTICS
This is the PWK series, it is a PW series solenoid pinch valve with the tube holding feature. The actuator is open-framed and used for silicone tubing of I.D. 1.6 mm. View More >>
| Model Number | PWK-1015W |
|---|---|
| Outer Dimensions | W39.2 x L26 x H59 mm |
| Method | Solenoid Pinch Valve |
| Type | 3-way |
| IN Port Pressure | 0~150 kPa |
| Ambient Temperature Range | 0~50°C |
| Rated Voltage | 12 or 24 VDC |
| Power Consumption | 2.8 W |
| Operating Duration | Continuous |
| Tube Material | Silicone |
| Tubing Inner Diameter（mm） | 1.0 mm |
| Tubing Outer Diameter（mm） | 3.0 mm |
| Notes | Details such as specifications, etc. may be changed without notification. |

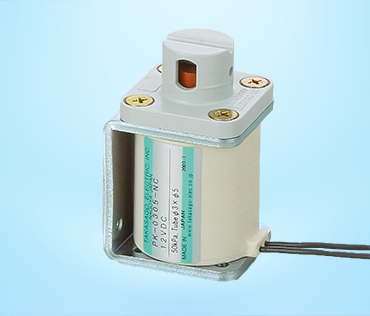

PK Series
FEATURES / CHARACTERISTICS
The PK series is a standard pinch valve for medium diameter silicone tubing (Inner diameter is around 3 - 6 mm). This has a lineup of N.C. (Normally Closed) types and N.O. (Normally Open) types. View More >>
| Method | Solenoid |
|---|---|
| Tubing Inner Diameter（mm） | 1.6 - 6.4 mm |
| Tubing Outer Diameter（mm） | 4.8 - 9.6 mm |
| Tubing Material | Silicone |
| Type | 2-way NC, 2-way NO |
| Operating Pressure Range | 0～50 kPa |
| Rated Voltage | 12, 24, or 90 VDC |
| 100 VAC | |
| Power Consumption | 10 W |
| Operating Duration | Continuous |
| Outer Dimensions | 36 x 40 x 65 - 88.3 mm |
| Ambient Temperature Range | 0～40℃ |

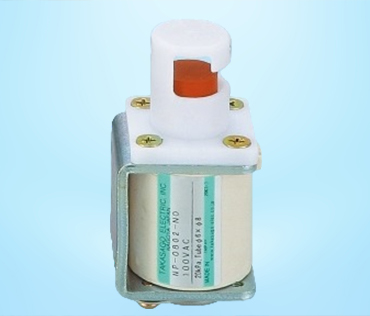

NP Series
FEATURES / CHARACTERISTICS
The NP series is a solenoid pinch valve and an improved model of the Pinch Valve - PK Series. There is a slit in the tube holder which allows the ability to insert tubing from the side of the pinch valve so that it is easy to use. View More >>
| Method | Solenoid |
|---|---|
| Tubing Inner Diameter（mm） | 2.0 - 6.4 mm |
| Tubing Outer Diameter（mm） | 4.0 - 9.6 mm |
| Tubing Material | Silicone, Pharmed® |
| Type | 2-way NC, 2-way NO, or 3-way |
| Operating Pressure Range | 0～50 kPa |
| Rated Voltage | 12, 24, or 90 VDC |
| 100 VAC | |
| Power Consumption | 10 W |
| Operating Duration | Continuous |
| Outer Dimensions | 36 x 40 x 64.5 - 87.5 mm |
| Ambient Temperature Range | 0～40℃ |

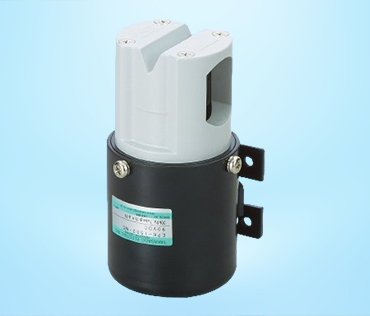

EPK Series
FEATURES / CHARACTERISTICS
This EPK series is a standard pinch valve for large diameter tubings of 10 - 15 mm. This has a lineup of N.C. (Normally Closed) types and N.O. (Normally Open) types. View More >>
| Method | Solenoid |
|---|---|
| Tubing Inner Diameter（mm） | 10.0 - 15.0 mm |
| Tubing Outer Diameter（mm） | 13.0 - 19.0 mm |
| Tubing Material | Silicone |
| Type | 2-way NC or 2-way NO |
| Operating Pressure Range | 0～50 kPa |
| Rated Voltage | 12, 24, 90, 180 or 200 VDC |
| 100 VAC | |
| Power Consumption | 60 W |
| Operating Duration | Intermittent (Continuous Duty) |
| Outer Dimensions | φ64 x 112 - 132 mm |
| Ambient Temperature Range | -10～40℃ |

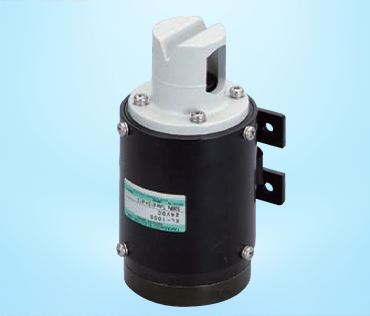

EL Series
FEATURES / CHARACTERISTICS
The EL series is a solenoid pinch valve, which is an equivalent model to the Pinch Valve - EPK Series (for the large diameter tubings), but with the latching mechanism. It contributes to low power consumption, because electricity is consumed only when energized. View More >>
| Method | Latching Solenoid |
|---|---|
| Tubing Inner Diameter（mm） | 10.0 - 15.0 mm |
| Tubing Outer Diameter（mm） | 13.0 - 19.0 mm |
| Tubing Material | Silicone |
| Type | 2-way |
| Operating Pressure Range | 0～50 kPa |
| Rated Voltage | 12 or 24 VDC |
| Power Consumption | 15 W |
| Operating Duration | Intermittent |
| Outer Dimensions | φ64 x 128.7 - 140.7 mm |
| Ambient Temperature Range | 0～40℃ |
