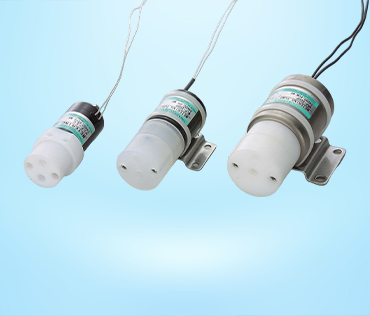

Are you looking for an efficient chemical dosing system for your industry? You should go with the latest micro-dosing pumps or metering pumps. These pumps involve positive displacement and provide a chemical dosing facility by varying its ability automatically or manually according to the requirements of a particular process condition.
Micro-dosing pumps or metering develop pumping action by using a reciprocating piston. Here, the piston always stays in direct contact with the fluid to process. Alternatively, the pump uses a diaphragm to shield it from the fluid.
A noticeable feature of any optimally performing micro dosing pumps or metering pumps is that they possess an outstanding accuracy level even in the case of repetition. Moreover, one can easily use a metering-type pump to deal with varieties of chemicals. These include slurries, viscous liquids, bases, corrosive products, and acids. Other than that, hydraulic fluids actuate the diaphragms between the diaphragm and the piston. Another prime feature is that the pump uses a microprocessor, computer, PLC, DLC, or flow proportioning system to control its chemical dosage.
Micro-dosing pumps or metering pumps may perform several functions and applications depending on a few specific conditions. These are every application that needs a relatively low fluid flow rate in milli liter per hour or GPH. Furthermore, such pumps are useful in plants and industrial works that demand highly accurate feeding rates and high systematic pressure. Chemical dosing micro pumps are also recommendable to deal with high-temperature, hazardous, and corrosive fluids. Lastly, the pumps are useful to pump slurries and viscous fluids.
We have experts at Sandur Fluid Controls Pvt. Ltd to deliver metering pumps to your chemical treatment plants. If you want details, visit our official website.
Sandur Fluid Controls Pvt. Ltd has recently launched Micro-dosing pumps or metering that have been developed with the most advanced technologies of our times. Alongside simple usage, we have even ensured the safety of our customers. Compared to other machines, our Micro-dosing pumps or metering techniques are efficient in managing work-hour capacity and enhancing productivity.
Sandur Fluid Controls Pvt. Ltd is one of the best Micro-dosing pumps or metering manufacturer, Micro-dosing pumps or metering exporter and Micro-dosing pumps or metering supplier in all over countires. Our company highly range to manufacturer of this Micro-dosing pumps or metering in builky. We are serve this Micro-dosing pumps or metering product universally. For more information you can contact our experts through our mobile number to assist in giving you more detailed information to meet your requirements. We Sandur Fluid Controls Pvt. Ltd. are acclaimed to be the best in the field and give our competitors a tough fight with regards to our quality and rates! Time and again we have proved that we are better than the best !

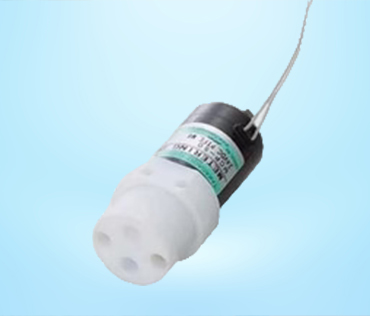

This diaphragm pump offers a maximum pumped volume of 50 µL. The adjustable range of pumped volume per shot is 5 - 50 µL.
Model Number | MCP-50 | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Outer Dimensions | 30 x 26 x 63.5 mm | ||||||||||
Port Connection | M6 or 1/4-28UNF | ||||||||||
Fluid Temperature Range | 10~40°C | ||||||||||
Ambient Temperature Range | 10~40°C | ||||||||||
Rated Voltage | 12 or 24 VDC | ||||||||||
Power Consumption | 4.4 W | ||||||||||
Pumped Volume Adjustable Range | 5-50 µL | ||||||||||
Repeat Precision | ±1% at 15-50 µL ±2% at 5-15 µL |
||||||||||
Weight | Approximately 110 g | ||||||||||
Maximum Operating Frequency | 4 Hz | ||||||||||
Insulation Class | Class B | ||||||||||
Dielectric Strength | 1500 VAC for 60 s | ||||||||||
Notes |
|

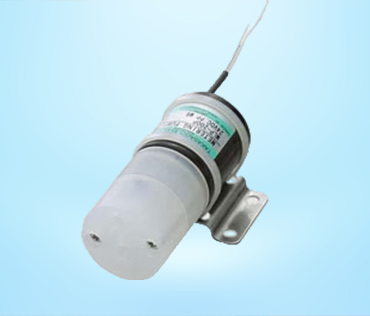

This diaphragm pump provides a maximum pumped volume of 200 µL—excellent repeated pumped volume accuracy of 1%. The adjustable range of pumped volume per shot is 10-200 µL.
Model Number | MLP-200P | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Outer Dimensions | 36 x 50 x 70 mm | ||||||||||
Port Connection | M6 or 1/4-28UNF | ||||||||||
Fluid Temperature Range | 10~40°C | ||||||||||
Ambient Temperature Range | 10~40°C | ||||||||||
Rated Voltage | 12 or 24 VDC | ||||||||||
Power Consumption | 5.9 W | ||||||||||
Pumped Volume Adjustable Range | 10-200 µL | ||||||||||
Repeat Precision | ±1% | ||||||||||
Maximum Operating Frequency | 1 Hz | ||||||||||
Notes |
|

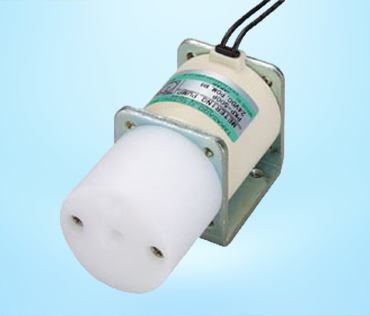

This diaphragm pump provides a maximum pumped volume of 500 µL—excellent repeated pumped volume accuracy of 1 %. The adjustable range of pumped volume per shot is 50-500 µL.
Model Number | PKP-500P | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Outer Dimensions | 36 x 43 x 78 mm | ||||||||||
Port Connection | M6 or 1/4-28UNF | ||||||||||
Fluid Temperature Range | 10~40°C | ||||||||||
Ambient Temperature Range | 10~40°C | ||||||||||
Rated Voltage | 12 or 24 VDC | ||||||||||
Power Consumption | 10 W | ||||||||||
Pumped Volume Adjustable Range | 50~500 µL | ||||||||||
Repeat Precision | ±1% | ||||||||||
Maximum Operating Frequency | 1 Hz | ||||||||||
Notes |
|
