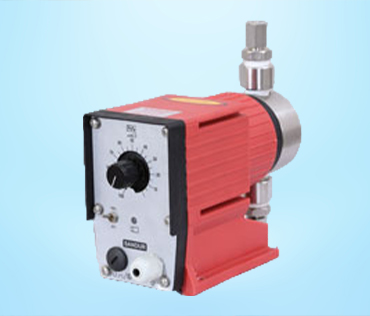

CC3-Series
Sandur electromagnetic dosing/metering pumps are solenoid driven and are controlled electronically by a PCB. The only moving part in the pump is the solenoid armature, with a maximum movement of 1.25 mm. There are no rotating parts in the pump and hence, no lubrication is needed. The wear and tear is negligible and the pump is virtually maintenance free.
- High Quality Plastic pump body
- 25%, 50% & 100% Stroke frequency adjustment
- 10% to 100% stroke length adjustment
- 0.54 LPH to 11.40 LPH Capacity
- Maximum pressure of 20 Kgf/cm2
PRODUCT FEATURE
*Compact Size *Double Ball Check Valves *High Quality, Long lasting re-inforced PTFE Diaphragm *Maximum stroke length of only 1.25mm, hence maintenance free *No lubrication needed *Discharge Rage Accuracy ± 1% *Handles any chemical *Can accept Potential Free Pulses and 4-20 mA signals *Discharge Countdown Ratio of 1:250 *Suitable for single phase power supply of 230V (C).
Specification
| Pump Model | Pressure (Bar) | Capacity (LPH) | Max. Strokes Per Minute | Nominal Power (Watt) | Tubing Size I/DXO/D (mm) | Suction Lift mWG | Shipping Weight(kg) |
| CC3 2001 | 20.00 | 0.54 | 100 | 12 | 4X6 | 3.0 | 2.5 |
| CC3 1201 | 12 | 1.08 | 100 | 12 | 4X6 | 4.0 | 2.5 |
| CC3 0803 | 8.0 | 2.88 | 100 | 12 | 4X6 | 5.0 | 2.5 |
| CC3 1002 | 10.00 | 1.74 | 100 | 12 | 6X8 | 5.0 | 2.6 |
| CC3 0407 | 3.50 | 6.30 | 100 | 12 | 6X8 | 2.5 | 2.6 |
| CC3 0212 | 2.00 | 11.40 | 100 | 12 | 6X8 | 2.0 | 2.8 |
- Pump heads are offered in PVC, PP, PTFE, Acrylic, MS & SS depending on the chemical to be handled.
- The shipping weights indicated above are for PVC, PP, PTFE & Acrylic pump heads and will vary for SS & MS.
- To select pump for specific application, following data is required.
- Chemical to be handled
- Capacity (litre / hr)
- Systems back pressure (bar)
- A wide range of accessories such as foot valve, dosing valve, check valve, pressure retaining valve, anti-siphon valve, pulsation dampener, level sensor, tank etc. are available on request to complete dosing system.
