Diaphragm Isolation Valves
Looking for a linear motion valve to control the fluid flow in your industry, try Diaphragm Isolation Valves. Diaphragm Isolation Valves have obtained their names from flexible discs. The disc stays connected with the top seat of a valve body to create a seal. Here, the diaphragm is a pressure-responsive and flexible element that transmits force to control, open, or close the valve.
The prime feature of Diaphragm Isolation Valves is that they come equipped with piston or position indicators on the top of their ball to indicate the flow direction of the inner fluid. As the valves operate at only 300 psi, they work well in moderate temperature ranges. In most cases, the valves operate at about 40 degrees Celsius of fluid and ambient temperature range. The body material of the product consists of PPS or PEEK chemically resistant materials. On the other hand, its seal consists of FKM material. Other features include a leak-proof seal, easy maintenance, tight shut-off, and reduction in leakage. Other than that, one can repair isolation valves without interrupting the connected pipeline.
Based on their minimum possible contact surfaces, diaphragm isolations valves are less likely to cause pollution are clean valves. Accordingly, they are ideal valves to control the fluid flow by providing a precise and variable opening to control pressure drop within a device. Diaphragm isolation valves with a diaphragm attached have found their applications in food processing, pharmaceutical, and water treatment industries. Besides, Diaphragm Isolation Valves are useful in electronics, the power industry, and high-purity water systems.
Our experts at Sandur Fluid Controls Pvt. Ltd. are responsible to manufacture and supply a wide range of Diaphragm Isolation Valves in the form of diaphragm isolation and manifold mountable valves with suitable molded bodies. If you want to get specifications, feel free to contact our professionals from our official website.
Sandur Fluid Controls Pvt. Ltd valve part and the actuator part of valves are sectioned by a diaphragm so the fluid does not come into contact with the metal parts of the solenoid. The wetted materials are PTFE, PEEK, PPS, etc. to be compatible with a wide range of fluids. The main features of the Takasago Diaphragm Isolation Valves are small-size and highly inertness. We can design and customize valves to meet your specific application requirements. Please feel free to contact us for more information about these Diaphragm Isolation Valves or information about customizing a product for your needs.
Sandur Fluid Controls Pvt. Ltd is one of the best Diaphragm Isolation Valves manufacturer, Diaphragm Isolation Valves exporter and Diaphragm Isolation Valves supplier in all over countires. Our company highly range to manufacturer of this Diaphragm Isolation Valves in builky. We are serve this Diaphragm Isolation Valves product universally. If you want this product please quote here!
Specification
List of Diaphragm Valves [Orifice of smaller than φ1 mm]
NV Series [Orifice: 0.4 mm]
![NV Series [Orifice: 0.4 mm]](img/products/diaphragm-isolation-valves/E-NLV.jpg)
FEATURES / CHARACTERISTICS
This ultra-small solenoid diaphragm valve provides the outer dimensions and diameter of 5.7 x H27 mm (Pipe Type: H32.5 mm); a feature is that its highly chemically inert. The internal volume of this microvalve is only 1.2 μL (Pipe Type: 4.3 μL). The internal volume of the valve chamber, which can be a dead volume, comprises only 0.75 μL of the internal volume of the valve. The wetted materials for this valve are PEEK and FFKM. We can make adjustments to the materials according to your needed requirements.
Please feel free to contact us for more details about this ultra-small solenoid diaphragm valve, the NV series.
View More >>
| Model Number | NV-2-MFF |
|---|---|
| Outer Dimensions | 5.7 x H27-32.5 mm |
| Method | Solenoid Diaphragm Isolation Valve |
| Type | 2-way NC |
| Port Connection | Gasket or Pipe |
| Orifice（mm） | 0.4 mm |
| IN Port Pressure | 0~100 kPa |
| OUT Port Pressure (NC) | 0~50 kPa |
| Fluid Temperature Range | 10~50°C |
| Ambient Temperature Range | 10~50°C |
| Rated Voltage | 5 or 12 VDC |
| Power Consumption | 1.2 W |
| Operating Duration | Intermittent ED = 40 % |
| Body Material | PPS or PEEK |
| Seal Material | FKM or FFKM |
| Notes |
Note: Details such as specifications, etc., may be changed without notice. |

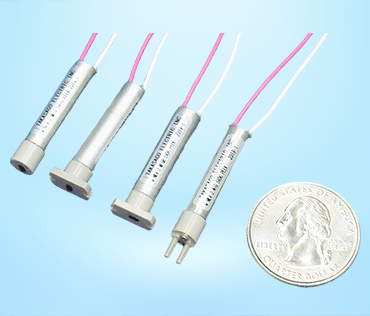

NLV Series [Orifice: 0.4 mm]
FEATURES / CHARACTERISTICS
This microvalve is a latching solenoid valve. This valve maintains its open/closed status by a permanent magnetic force, contributing to energy saving and lower heat generation. The outer dimensions of this microvalve are the diameter of 5.7 x H27 mm (Pipe Type: H32.5 mm), and the internal volume is only at 4.3 μL. The internal volume of the valve chamber, which could potentially be a dead volume, comprises only 0.75 μL of this. The wetted materials are PEEK and FFKM, which are highly chemically inert. We can make adjustments to materials according to your needed requirements.
Please feel free to contact us for more details about this micro solenoid diaphragm valve, the NLV series.
View More >>
| Model Number | NLV-2-MFF |
|---|---|
| Outer Dimensions | 5.7 x H27-32.5 mm |
| Method | Latching Solenoid Diaphragm Isolation Valve |
| Type | 2-way |
| Port Connection | Gasket or Pipe |
| Orifice（mm） | 0.4 mm |
| IN Port Pressure | 0~100 kPa |
| OUT Port Pressure (NC) | 0~50 kPa |
| Fluid Temperature Range | 10~50°C |
| Ambient Temperature Range | 10~50°C |
| Rated Voltage | 5 or 12 VDC |
| Power Consumption | 1.2 W |
| Operating Duration | Intermittent ED = 40 % |
| Body Material | PPS or PEEK |
| Seal Material | FKM or FFKM |
| Notes |
Note: Details such as specifications, etc., may be changed without notice. |
KV Series [Orifice: 0.8 mm]
![KV Series [Orifice: 0.8 mm]](img/products/diaphragm-isolation-valves/KV.jpg)
FEATURES / CHARACTERISTICS
This valve is the KV series; it is a diaphragm isolation valve with a width of just 6 mm. Substantial shortening of the flow path between the ports and reduction in mounting space is possible because of the manifold mountable type. The internal volume of this valve is just 10 μL on both the IN and OUT ports.
Please feel free to contact us for more details about this micro solenoid diaphragm valve, the KV series.
View More >>
| Model Number | KV-2-NCF |
|---|---|
| Outer Dimensions | W6 x L50 x H12.5 mm |
| Method | Solenoid Diaphragm Isolation Valve |
| Type | 2-way NC |
| Port Connection | Manifold-Mountable Type |
| Orifice（mm） | 0.8 mm |
| IN Port Pressure | 0~100 kPa |
| OUT Port Pressure (NC) | 0~50 kPa |
| Fluid Temperature Range | 5~40°C |
| Ambient Temperature Range | 5~50°C |
| Rated Voltage | 12 or 24 VDC |
| Power Consumption | 1.8 W |
| Operating Duration | Continuous |
| Body Material | PPS or PEEK |
| Seal Material | FPM or FFKM |
| Notes |
Note: Details such as specifications, etc., may be changed without notice. |

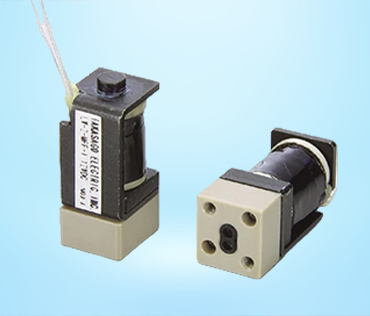

LV Series [Orifice: 0.8 mm]
![LV Series [Orifice: 0.8 mm]](img/products/diaphragm-isolation-valves/LVS.jpg)
FEATURES / CHARACTERISTICS
This manifold mountable diaphragm valve has dimensions of 8.9 x 10.4 mm, giving it a footprint of fewer than 1 cm2. This solenoid diaphragm valve simultaneously exhibits a minimal internal volume of 3.3 μL at the IN port and 8.3 μL at the OUT port and shortens the flow path between ports.
Please feel free to contact us for more details about this micro solenoid diaphragm valve, the LV series.
View More >>
| Model Number | LV-2-M5E |
|---|---|
| Outer Dimensions | W8.9 x L10.4-28.5 x H16.5-28 mm |
| Method | Solenoid Diaphragm Isolation Valve |
| Type | 2-way NC |
| Port Connection | M5 or Manifold-Mountable Type |
| Orifice（mm） | 0.8 mm |
| IN Port Pressure | 0~100 kPa |
| OUT Port Pressure (NC) | 0~50 kPa |
| Fluid Temperature Range | 5~50°C |
| Ambient Temperature Range | 5~40°C |
| Rated Voltage | 12 or 24 VDC |
| Power Consumption | 1.2 W |
| Operating Duration | Continuous |
| Body Material | PPS or PEEK |
| Seal Material | EPDM, FPM, or FFKM |
| Notes |
Note: Details such as specifications, etc., may be changed without notice. |

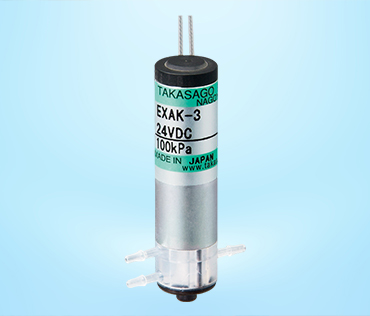

EXAK Series [Orifice: 0.8 mm]
![EXAK Series [Orifice: 0.8 mm]](img/products/diaphragm-isolation-valves/EXAK.jpg)
FEATURES / CHARACTERISTICS
This micro solenoid diaphragm isolation valve is a zero-pumping volume-type of the diaphragm isolation valve. PTFE is the material used for all of the wetted parts giving it excellent chemical compatibility. The outer dimensions of this valve are very compact at only φ12.0 x H 48.1 mm. View More >>
| Method | Solenoid Diaphragm Isolation Valve |
|---|---|
| Orifice (mm) | 0.8 mm |
| Type | 2-way NC, 2-way NO, or 3-way |
| IN Port Pressure |
-40～100 kPa
|
| OUT Port Pressure (NC) |
0～50 kPa
|
| OUT Port Pressure (NC)(NO) |
0～50 kPa
|
| Port Connection | Hose Barb or M5 |
| Body Material | PFA |
| Seal Material | PTFE |
| Other wetted materials | - |
| Rated Voltage | 12 or 24 VDC |
| Power Consumption | 0.94 W |
| Operating Duration | Continuous |
| Outer Dimensions | 12 x 26.0 x 35.45 mm (Hose Barb) |
| Fluid Temperature Range | 0～60℃ |
| Ambient Temperature Range | 0～50℃ |

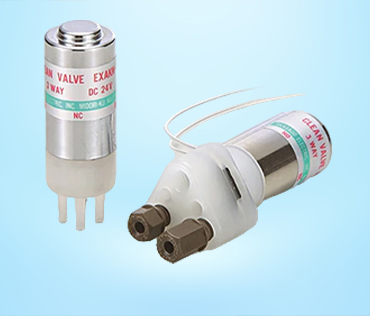

EXAKN Series [Orifice: 0.8 mm]
![EXAKN Series [Orifice: 0.8 mm]](img/products/diaphragm-isolation-valves/EXAKN-e.jpg)
FEATURES / CHARACTERISTICS
This micro solenoid diaphragm isolation valve, the EXAKN series, is a zero-pumping volume-type of the diaphragm isolation valve. FFKM is used for the seal part, and with this, the valve has an increased sealing ability. The outer dimensions of this valve are very compact at only φ14.0 x H 42.3 mm. View More >>
| Method | Solenoid Diaphragm Isolation Valve |
|---|---|
| Orifice（mm） | 0.8 mm |
| Type | 2-way NC, 2-way NO, or 3-way |
| IN Port Pressure |
-40～300 kPa
|
| OUT Port Pressure (NC) |
0～150 kPa
|
| OUT port pressure (NC)(NO) |
0～150 kPa
|
| Port Connection | Hose Barb, M5, or Manifold-Mount |
| Body Material | ETFE |
| Seal Material | FKM or FFKM |
| Other Wetted Materials | PTFE or PVDF |
| Rated Voltage | 12 or 24 VDC |
| Power Consumption | 1.2 W |
| Operating Duration | Continuous |
| Outer Dimensions | φ14.0 x 42.3 mm (Hose Barb) |
| Fluid Temperature Range | 0～60℃ |
| Ambient Temperature Range | 0～60℃ |
List of Diaphragm Valves [Orifice of φ1 - 2 mm]

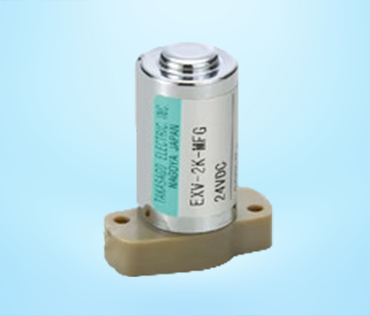

EXV Series [Orifice: 1.0 mm]
![EXV Series [Orifice: 1.0 mm]](img/products/diaphragm-isolation-valves/exv2.jpg)
FEATURES / CHARACTERISTICS
These diaphragm valves are diaphragm isolation manifold mountable valves with a molded body. It is small and compact with dimensions of just W14 mm x H32 mm. You can choose the body material from highly chemically resistant PEEK or PPS options. Please feel free to contact us for more details about this Diaphragm Valve - the EXV series. View More >>
| Method | Solenoid Diaphragm Isolation Valve |
|---|---|
| Orifice（mm） | 1.0 mm |
| Type | 2-way NC |
| IN Port Pressure |
-20～200 kPa
|
| OUT Port Pressure (NC) |
-50～200 kPa
|
| OUT Port Pressure (NC)(NO) |
-～- kPa
|
| Port Connection | Manifold-Mount |
| Body Material | PPS, PEEK, or PCTFE |
| Seal Material | FKM or FFKM |
| Other Wetted Materials | PTFE |
| Rated Voltage | 12 or 24 VDC |
| Power Consumption | 2.8 W |
| Operating Duration | Continuous |
| Outer Dimensions | 14.0 x 25.0 x 31.7 mm |
| Fluid Temperature Range | 0～40℃ |
| Ambient Temperature Range | 0～40℃ |

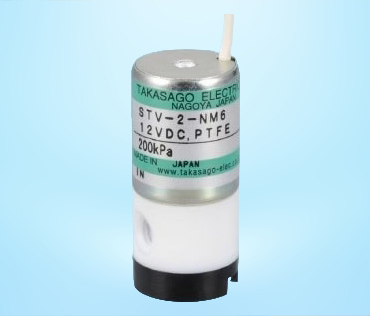

STV Series [Orifice: 1.0 - 1.2 mm]
![STV Series [Orifice: 1.0 - 1.2 mm]](img/products/diaphragm-isolation-valves/STV.jpg)
FEATURES / CHARACTERISTICS
The STV series is a solenoid diaphragm isolation valve with the outer dimensions of just φ20.0 x 42.5 mm. Highly chemical compatible materials such as PTFE, PEEK, PPS, etc. are available to use for the valve body material. This solenoid valve is a popular model among our small inert solenoid valves and is playing an active role in a wide range of applications. View More >>
| Method | Solenoid Diaphragm Isolation Valve |
|---|---|
| Orifice（mm） | 1.0 - 1.2 mm |
| Type | 2-way NC or 2-way NO |
| IN Port Pressure |
-90～200 kPa
|
| OUT Port Pressure (NC) |
0～50 kPa
|
| OUT Port Pressure (NC)(NO) |
0～50 kPa
|
| Port Connection | M6, 1/4-28UNF, Hose Barb, or Manifold-Mount |
| Body Material | PEEK, PPS, PTFE, or POM |
| Seal Material | PTFE, FKM, or FFKM |
| Other Wetted Materials | PTFE or AL2O3 |
| Rated Voltage | 12 or 24 VDC |
| Power Consumption | 1.7 - 2.9 W |
| Operating Duration | Continuous |
| Outer Dimensions | φ20.0 x 42.5 mm |
| Fluid Temperature Range | 0～50℃ |
| Ambient Temperature Range | 0～50℃ |

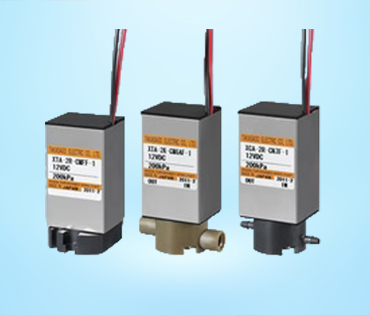

XTA Series [Orifice: 1.2 - 2.0 mm]
![XTA Series [Orifice: 1.2 - 2.0 mm]](img/products/diaphragm-isolation-valves/XTA.jpg)
FEATURES / CHARACTERISTICS
These are the solenoid diaphragm isolation valves with a microcomputer control circuit built in as a standard feature. Using the control circuit's characteristics, we have added valves with various elements to this series, such as a silent type, low power consumption type, and high-pressure type. Different body materials and port connections, including a manifold-mountable kind, can be used with these valves. While the design of this valve is an open frame solenoid which provides the XTA series a good cost performance, it also features a stainless steel case for a refined design. View More >>
| Method | Solenoid Diaphragm Isolation Valve |
|---|---|
| Orifice (mm) | 1.2 - 2.0 mm |
| Type | 2-way NC |
| IN Port Pressure |
-50～600 kPa
|
| OUT Port Pressure (NC) |
0～300 kPa
|
| OUT Port Pressure (NC)(NO) |
-～- kPa
|
| Port Connection | O-ring or Hose Barbs |
| Body Material | PPS or PEEK |
| Seal Material | EPDM or FKM |
| Other Wetted Materials | PTFE |
| Rated Voltage | - |
| Power Consumption | 0.8 - 3.1 W |
| Operating Duration | 12 or 24 VDC |
| Outer Dimensions | 24.0 x 20.6 x 53.9 mm |
| Fluid Temperature Range | 5～50℃ |
| Ambient Temperature Range | 5～50℃ |
MTV Series [Orifice: 0.4 - 2.0 mm]
FEATURES / CHARACTERISTICS
This solenoid diaphragm isolation valve, MTV Series has an outer diameter of just Φ26.0 mm and represents the TAKASAGO brand. A wide variety of models are available for this valve. The PTFE machined diaphragm has high chemical compatibility. There are a wide variety of valve bodies such as molded bodies or machined bodies, threaded port connections or hose barb connections, etc. View More >>
| Method | Solenoid Diaphragm Isolation Valve |
|---|---|
| Orifice（mm） | 1.0-2.0 mm |
| Type | 2-way NC or 2-way NO |
| IN Port Pressure | -100～600 kPa |
| OUT Port Pressure (NC) | 0～100 kPa |
| OUT Port Pressure (NC)(NO) | 0～100 kPa |
| Port Connection | M6, 1/4-28UNF, or Hose Barbs |
| Body Material | PEEK, PPS, PTFE, PCTFE, POM, or HPVC |
| Seal Material | PTFE, FKM, or FFKM |
| Other Wetted Materials | PTFE or AL2O3 |
| Rated Voltage | 12, 24, or 90 VDC |
| 100 VAC | |
| Power Consumption | 1.9-4.4 W |
| Operating Duration | Continuous |
| Outer Dimensions | φ26.0 x 57 mm |
| Fluid Temperature Range | 0～70℃ |
| Ambient Temperature Range | 0～60℃ |

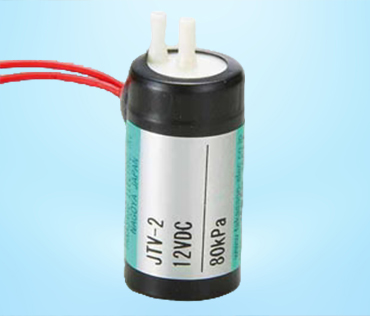

JTV Series [Orifice: 1.2 mm]
![JTV Series [Orifice: 1.2 mm]](img/products/diaphragm-isolation-valves/JTV.jpg)
FEATURES / CHARACTERISTICS
The JTV series is a miniature 2-way NC elastomer solenoid diaphragm isolation valve. The hose barb connection enables you to connect the silicone tubing directly onto the valve. View More >>
| Model Number | JTV-2 |
|---|---|
| Outer Dimensions | 14.5 x H34.1 mm |
| Method | Solenoid Diaphragm Isolation Valve |
| Type | 2-way NC |
| Port Connection | Hose Barb |
| Orifice（mm） | 1.2 mm |
| IN Port Pressure | 0~80 kPa |
| OUT Port Pressure (NC) | 0~10 kPa |
| Fluid Temperature Range | 0~40℃ |
| Ambient Temperature Range | 0~40℃ |
| Rated Voltage | 12 or 24 VDC |
| Power Consumption | 1 W |
| Operating Duration | Continuous |
| Body Material | U Polymer |
| Seal Material | FKM |
| Notes |
Note: Details such as specifications, etc. may be changed without notification. |

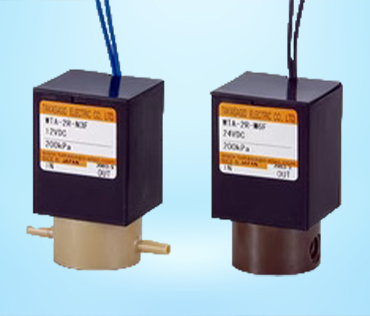

WTA / WTB Series [Orifice: 1.6 - 2.0 mm]
![WTA/WTB Series [Orifice: 1.6 - 2.0 mm]](img/products/diaphragm-isolation-valves/WTA.jpg)
FEATURES / CHARACTERISTICS
This is a solenoid diaphragm isolation valve, for the sole purpose of cost reduction, this diaphragm valve adopts an opened framed solenoid, which is also enclosed by a plastic case. These WTA/WTB series pumps have a variety of standard materials that are available for the valve body are PTFE, PEEK, PPS, FKM, and FFKM. View More >>
| Method | Solenoid Diaphragm Isolation Valve |
|---|---|
| Orifice（mm） | 1.6 - 2.0 mm |
| Type | 2-way NC, 2-way NO, or 3-way |
| IN Port Pressure |
-90～200 kPa
|
| Port Connection | M6, 1/4-28UNF, or Hose Barbs |
| Body Material | PEEK, PPS, or PTFE |
| Seal Material | PTFE, FKM, or FFKM |
| Other Wetted Materials | PTFE |
| Rated Voltage | 12 or 24 VDC |
| Power Consumption | 2.8 - 3.4 W |
| Operating Duration | Continuous |

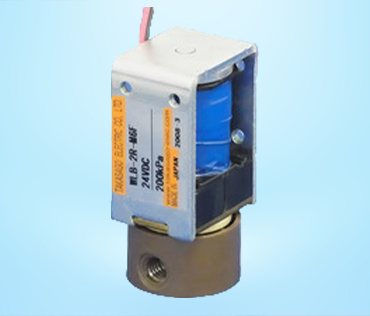

WLB Series [Orifice: 2.0 mm]
![WLB Series [Orifice: 2.0 mm]](img/products/diaphragm-isolation-valves/WLB.jpg)
FEATURES / CHARACTERISTICS
The WLB series is a latching solenoid valve. Electricity is consumed when energization is only required just an instant opening or closing, so heat generation is very limited. These WLB series pumps have a variety of standard materials that are available for the valve body are PTFE, PEEK, PPS, FKM, and FFKM. View More >>
| Method | Latching Solenoid Diaphragm Isolation Valve |
|---|---|
| Orifice（mm） | 2.0 mm |
| Type | 2-way or 3-way |
| IN Port Pressure |
-90～200 kPa
|
| OUT Port Pressure (NC) |
0～100 kPa
|
| OUT Port Pressure (NC)(NO) |
0～50 kPa
|
| Port Connection | M6, 1/4-28UNF, or Hose Barb |
| Body Material | PTFE, PEEK, or PPS |
| Seal Material | PTFE, FKM, or FFKM |
| Other Wetted Materials | PTFE |
| Rated Voltage | 12 or 24 VDC |
| Power Consumption | 8.0 W |
| Operating Duration | Intermittent ED = 10 % |
| Outer Dimensions | 25.0 x 26.0 x 55.9 mm |
| Fluid Temperature Range | 5～50℃ |
| Ambient Temperature Range | 5～50℃ |

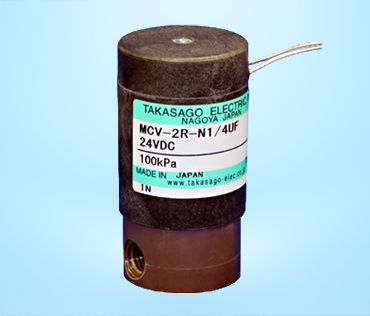

![MCV Series [Orifice: 2.0 mm]](img/products/diaphragm-isolation-valves/MCV.jpg)
| Model Number | MCV-2R | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Outer Dimensions | W42-26 x H48.7 mm | ||||||||||
| Method | Solenoid Diaphragm Isolation Valve | ||||||||||
| Type | 2-way NC | ||||||||||
| Port Connection | 1/4-28UF, M6, or Hose Barb | ||||||||||
| Orifice（mm） | 2.0 mm | ||||||||||
| IN Port Pressure | -27~100 kPa | ||||||||||
| OUT Port Pressure (NC) | 0~50 kPa | ||||||||||
| Fluid Temperature Range | 0~60℃ | ||||||||||
| Ambient Temperature Range | 0~60℃ | ||||||||||
| Rated Voltage | 12, 24, or 90 VDC 100 VAC |
||||||||||
| Power Consumption | 2.6 W | ||||||||||
| Operating Duration | Continuous | ||||||||||
| Body Material | PPS Body | ||||||||||
| Seal Material | FKM | ||||||||||
| Notes |
Note: Details such as specifications, etc. may be changed without notification. |
List of Diaphragm Valves [Orifice of larger than φ2 mm]

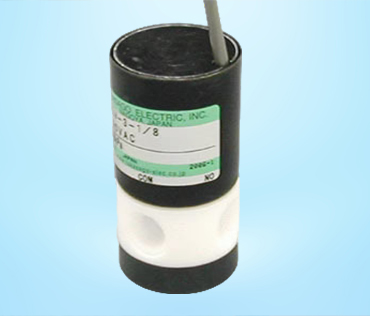

MLV Series [Orifice: 2.5 mm]
![MLV Series [Orifice: 2.5 mm]](img/products/diaphragm-isolation-valves/MLV.jpg)
FEATURES / CHARACTERISTICS
The MLV series is a solenoid diaphragm isolation valve with the outer dimensions of just φ30.0 x 57.2 mm. The PTFE machined diaphragm of this solenoid valve has a high chemical compatibility. The port connection can be selected from M8, 5/16-24UNF, Rc1/8 and 1/8-27NPT. View More >>
| Method | Solenoid Diaphragm Isolation Valve |
|---|---|
| Orifice（mm） | 2.5 mm |
| Type | 2-way NC, 2-way NO, or 3-way |
| IN Port Pressure | -40～200 kPa |
| OUT Port Pressure (NC) | 0～50 kPa |
| OUT Port Pressure (NC)(NO) | 0～50 kPa |
| Port Connection | M8, 5/16-24UNF, Rc1/8, or 1/8-27NPT |
| Body Material | PTFE, PCTFE, HPVC, POM, or PEEK |
| Seal Material | PTFE or FFKM |
| Other Wetted Materials | PTFE or AL2O3 |
| Rated Voltage | 12, 24, or 90 VDC |
| 100 VAC | |
| Power Consumption | 3.1 - 4.4 W |
| Operating Duration | Continuous |
| Outer Dimensions | φ30.0 x 57.2 mm |
| Fluid Temperature Range | 0～60℃ |
| Ambient Temperature range | 0～60℃ |

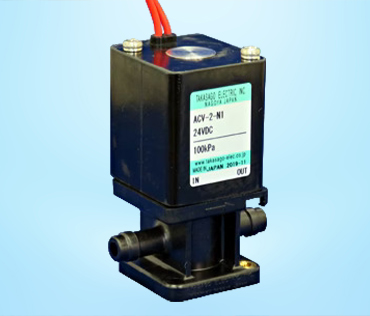

ACV Series [Orifice: 3.0 mm]
![ACV Series [Orifice: 3.0 mm]](img/products/diaphragm-isolation-valves/ACV.jpg)
FEATURES / CHARACTERISTICS
he ACV series is a 2-way NC solenoid diaphragm isolation valve with a molded actuator, a molded body and an elastomer diaphragm. It has the dimension size of just W34 x L47 x H62 mm. The port connections are the hose barbs to which silicone tubing can be connected directly to. View More >>
| Model Number | ACV-2 | ||||||
|---|---|---|---|---|---|---|---|
| Outer Dimensions | W34 x L47 x H62 mm | ||||||
| Method | Solenoid Diaphragm Isolation Valve | ||||||
| Type | 2-way NC | ||||||
| Port Connection | Hose Barb | ||||||
| Orifice（mm） | 3.0 mm | ||||||
| IN Port Pressure | -55~100 kPa | ||||||
| OUT Port Pressure (NC) | 0~50 kPa | ||||||
| Fluid Temperature Range | 5~60°C | ||||||
| Ambient Temperature Range | 0~40°C | ||||||
| Rated Voltage | 12 or 24 VDC | ||||||
| Power Consumption | 5 W | ||||||
| Operating Duration | Continuous | ||||||
| Body Material | PPO | ||||||
| Seal Material | FKM | ||||||
| Notes |
Note: Details such as specifications, etc. may be changed without notification. |

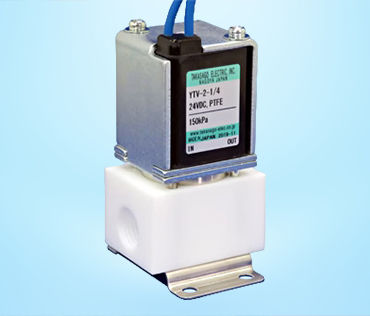

YTV Series [Orifice: 3.0 mm]
![YTV Series [Orifice: 3.0 mm]](img/products/diaphragm-isolation-valves/YTV.jpg)
FEATURES / CHARACTERISTICS
This is the YTV series it is a solenoid diaphragm isolation valve. This valve offers the outer dimensions of just W40 x L40 x H90 mm. A PTFE machined diaphragm are used in this solenoid valve. Also this valve offers the available types of 2-way and 3-way versions. View More >>
| Model Number | YTV-2 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Outer Dimensions | W40 x L50 x H77 mm | |||||||||||||
| Method | Solenoid Diaphragm Isolation Valve | |||||||||||||
| Type | 2-way NC | |||||||||||||
| Port Connection | Rc1/4 or Rc1/8 | |||||||||||||
| Orifice（mm） | 3.0 mm | |||||||||||||
| IN Port Pressure | -100~150 kPa | |||||||||||||
| OUT Port Pressure (NC) | 0~30 kPa | |||||||||||||
| Fluid Temperature Range | 0~60°C | |||||||||||||
| Ambient Temperature Range | 0~60°C | |||||||||||||
| Rated Voltage | 12, 24, or 90 VDC 100 VAC |
|||||||||||||
| Power Consumption | 5 W | |||||||||||||
| Operating Duration | Continuous | |||||||||||||
| Body Material | PTFE or SUS316 | |||||||||||||
| Seal Material | PTFE | |||||||||||||
| Notes |
Note: Details such as specifications, etc. may be changed without notification. |

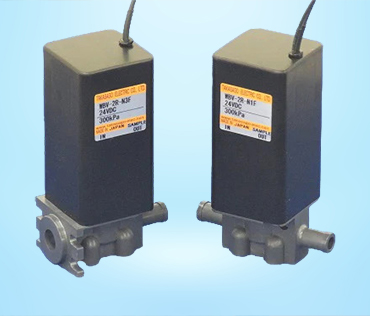

WBV Series [Orifice: 4.0 mm]
![WBV Series [Orifice: 4.0 mm]](img/products/diaphragm-isolation-valves/WBV.jpg)
FEATURES / CHARACTERISTICS
- Internal structure optimized for a compact size with a more significant flow (orifice diameter of 4.0 mm) than conventional valves.
- Power consumption reduction by approximately 40% compared to equivalent models by other manufacturers.
- When a pump reverses its flow, an operating pressure range of -90 to 300 kPa will enable the valve to operate appropriately for both IN and OUT ports.
- It is compatible with fluid temperatures of up to 95℃, making it applicable in dialysis machine flushing processes. Wetted materials are also resistant to washing liquids such as sodium hypochlorite.
- Coil covered by a case, eliminating concerns of liquids splashing on the valve during maintenance.
- Different port connections are available, including O-ring types, which can be mounted directly on a balance chamber.
- Also suitable for waste lines of various instruments.
| Model Number | WBV-2R-N1F | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Outer Dimensions | W48-57 x L33 x H84.8 mm | |||||||||||||||||
| Method | Bellows - Solenoid Diaphragm Isolation Valve | |||||||||||||||||
| Type | 2-way NC | |||||||||||||||||
| Port Connection | Hose Barb or Hose Barb & O-ring (N2) | |||||||||||||||||
| Orifice（mm） | 4 mm | |||||||||||||||||
| IN Port Pressure | -90 ~ 300 kPa | |||||||||||||||||
| OUT Port Pressure (NC) | -90 ~ 300 kPa | |||||||||||||||||
| Fluid Temperature Range | 5 ~ 95°C | |||||||||||||||||
| Ambient Temperature Range | 0 ~ 50°C | |||||||||||||||||
| Rated Voltage | 12 or 24 VDC | |||||||||||||||||
| Power Consumption | 5.8 W | |||||||||||||||||
| Operating Duration | Continuous | |||||||||||||||||
| Body Material | PPS | |||||||||||||||||
| Seal Material | FKM or EPDM | |||||||||||||||||
| Notes |
Note: Details such as specifications, etc., may be changed without notice. |

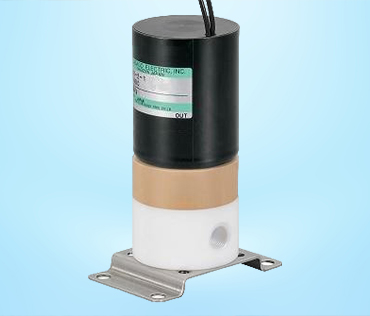

NPV Series [Orifice: 4.0 mm]
![NPV Series [Orifice: 4.0 mm]](img/products/diaphragm-isolation-valves/NPV.jpg)
FEATURES / CHARACTERISTICS
This is a solenoid-driven proportional diaphragm valve for chemical fluids and it features a completely controllable flow rate by adjusting the input voltage to the valve.
- Has a very high chemical resistance due to all PTFE wetted parts.
- Flow rate is controllable by changing the input voltage.
- Has a comparatively large orifice diameter of 4.0 mm, which allows it to cover a wide range of flow rates.
| Model Number | NPV-4T | ||||||
|---|---|---|---|---|---|---|---|
| Outer Dimensions | W40 x L66 x H95 mm | ||||||
| Method | Solenoid-Driven Proportional Diaphragm Valve | ||||||
| Type | 2-way NC | ||||||
| Port Connection | Rc1/4 or Rc1/8 | ||||||
| Orifice（mm） | 4.0 mm | ||||||
| IN Port Pressure | 0~100 kPa | ||||||
| OUT Port Pressure (NC) | 0~50 kPa | ||||||
| Fluid Temperature Range | 10~60°C | ||||||
| Ambient Temperature Range | 10~60°C | ||||||
| Rated Voltage | 15~22 VDC | ||||||
| Power Consumption | 7 W | ||||||
| Operating Duration | Continuous | ||||||
| Body Material | PTFE | ||||||
| Seal Material | PTFE | ||||||
| Notes |
Note: Details such as specifications, etc. may be changed without notification. |

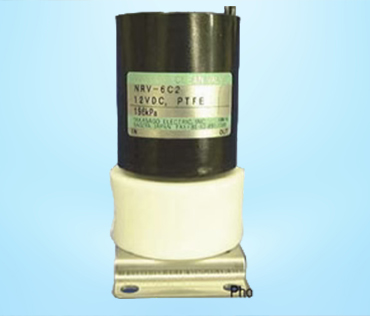

NRV Series [Orifice: 4.0 - 6.0 mm]
![NRV Series [Orifice: 4.0 - 6.0 mm]](img/products/diaphragm-isolation-valves/NRV.jpg)
FEATURES / CHARACTERISTICS
This is the NRV series, it is a solenoid diaphragm isolation valve. This valve has the orifice diameter of just φ4.0-6.0 mm. This diaphragm valve has valve bodies that are machined from a variety of materials which allows it to be available for this diaphragm valve. Select the port connection from Rc1/4, Rc1/8, 1/4-18NPT, or 1/8-27NPT. View More >>
| Method | Solenoid Diaphragm Isolation Valve |
|---|---|
| Orifice（mm） | 4.0 - 6.0 mm |
| Type | 2-way NC, 2-way NO, or 3-way |
| IN Port Pressure | -90～200 kPa |
| OUT Port Pressure (NC) | 0～50 kPa |
| OUT Port Pressure (NC)(NO) | 0～50 kPa |
| Port Connection | Rc1/4, Rc1/8, 1/4-18NPT, or 1/8-27NPT |
| Body Material | PTFE, PEEK, PPS, or HPVC |
| Seal Material | PTFE, FKM, or FFKM |
| Other Wetted Materials | PTFE, AL2O3, or PCTFE |
| Rated Voltage | 12, 24, or 90 VDC |
| 100 VAC | |
| Power Consumption | 5.5 W |
| Operating Duration | Continuous |
| Outer Dimensions | φ44.0 - 45.0 x 80.0 - 84.0 mm |
| Fluid Temperature Range | 0～60℃ |
| Ambient Temperature Range | 0～60℃ |

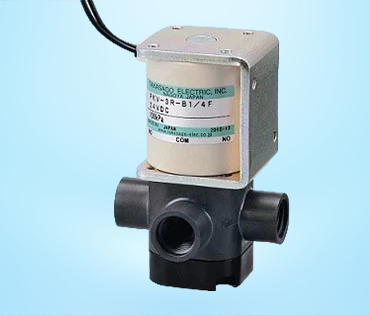

PKV Series [Orifice: 4.0 - 6.0 mm]
![PKV Series [Orifice: 4.0 - 6.0 mm]](img/products/diaphragm-isolation-valves/PKV.jpg)
FEATURES / CHARACTERISTICS
The PKV series is a solenoid diaphragm isolation valve with a wide range of orifice diameters ranging from Φ4.0 or 6.0 mm and has the outer dimensions of 40.0-56.0 x 42.0-46.0 x 71.0-85.3 mm. The standard materials that are available for the valve body are PEEK, PPS, PTFE, PCTFE, or HPVC. For the diaphragm, the available seal materials are PTFE, FKM, or FFKM. View More >>
| Method | Solenoid Diaphragm Isolation Valve |
|---|---|
| Orifice（mm） | 4.0 or 6.0 mm |
| Type | 2-way NC, 2-way NO, or 3-way |
| IN Port Pressure | -90～200 kPa |
| OUT Port Pressure (NC) | 0～50 kPa |
| OUT Port Pressure (NC)(NO) | 0～50 kPa |
| Port Connection | Rc1/4, Rc1/8, 1/4-18NPT, 1/8-27NPT, or Hose Barb* |
| Body Materials | PEEK, PPS, PTFE, PCTFE, or HPVC |
| Seal Materials | PTFE, FKM, or FFKM |
| Other Wetted Materials | PTFE, AL2O3, or PCTFE |
| Rated Voltage | 12, 24, or 90 VDC |
| 100 VAC | |
| Power Consumption | 6.0 - 10.0 W |
| Operating Duration | Continuous |
| Outer Dimensions | 40.0-56.0 x 42.0-46.0 x 71.0-85.3 mm |
| Fluid Temperature Range | 5～40℃ |
| Ambient Temperature Range | 5～40℃ |

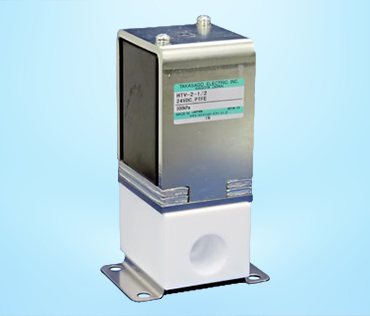

HTV Series [Orifice: 10.0 mm]
![HTV Series [Orifice: 10.0 mm]](img/products/diaphragm-isolation-valves/HTV.jpg)
FEATURES / CHARACTERISTICS
This 2-way NC solenoid diaphragm isolation valve has a large orifice diameter of 10.0 mm. The PTFE machined diaphragm used for this model has a high chemical compatibility. View More >>
| Model Number | HTV-2 | ||||||
|---|---|---|---|---|---|---|---|
| Outer Dimensions | W60 x L75 x H124 mm | ||||||
| Method | Solenoid Diaphragm Isolation Valve | ||||||
| Type | 2-way NC | ||||||
| Port Connection | Rc1/2 or Rc3/8 | ||||||
| Orifice（mm） | 10.0 mm | ||||||
| IN Port Pressure | -90~100 kPa | ||||||
| OUT Port Pressure (NC) | 0~50 kPa | ||||||
| Fluid Temperature Range | 0~60℃ | ||||||
| Ambient Temperature Range | 0~60℃ | ||||||
| Rated Voltage | 12, 24, or 90 VDC 100 VAC |
||||||
| Power Consumption | 10 W | ||||||
| Operating Duration | Continuous | ||||||
| Body Material | PTFE | ||||||
| Seal Material | PTFE | ||||||
| Notes |
Note: Details such as specifications, etc. may be changed without notification. |
How can we help you?
Contact us at the Industrial office nearest to you or submit a business enquiry online.
Contact Us
