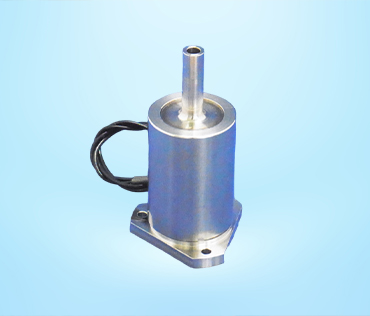

HVC Series Valves
FEATURES / CHARACTERISTICS
Stainless Steel Valve For Satellite Propulsion Systems/Thrusters
- 2.8 MPa pressure rating.
- Frictionless moving core.
Specification
| Model Number | HVC |
|---|---|
| Type | 2-way NC |
| Port Connection | IN: Pipe OUT: O-ring (Manifold Mount) |
| Orifice（mm） | 1.5 mm |
| Ambient Temperature Range | 4~121˚C * |
| Rated Voltage | 24~32 VDC |
| Power Consumption | 18 W at 32 VDC, 4˚C |
| Operating Duration | Intermittent ED: 11% Maximum On Time: 7 min at 32 VDC, 20˚C |
| Operating Pressure | 0~2.8 MPa |
| Seal Material | EPDM (Optionally FKM, FFKM) |
| Weight | 200 g |
