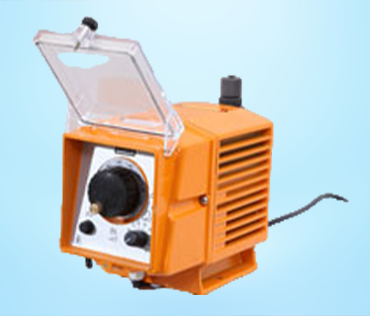

B-Series

In the E & B range of pumps, the frequency can be varied between 4% & 100% and the stroke length between 10% & 100%. Thus, pump can operate in the range of 0.4% to 100% of the rated capacity. While the frequency can be adjusted in steps of 25%, 50% and 100%, the stroke length can be varied from 10% to 100% in CC3 series.

The pump also has an inbuilt facility for automatic control of dosing and can accept pulse signals or analogue signals of 0/4-20mA. The pump also has the additional feature for low-level indication in the dosing tank.

The pump is suitable for a power supply of single phase, 230V (AC)

•   aluminium powder coated pump body
•   0% to 100% Stroke frequency adjustment
•   10% to 100% stroke length adjustment
•   Can accept pulse & 4-20mA signals
•   0.44 LPH to 54.60 LPH Capacity
•   Maximum pressure of 25 Kgf/cm2

PRODUCT FEATURE

Compact Size *Double Ball Check Valves *High Quality, Long lasting re-inforced PTFE Diaphragm *Maximum stroke length of only 1.25mm, hence maintenance free *No lubrication needed *Discharge Rage Accuracy ± 1% *Handles any chemical *Can accept Potential Free Pulses and 4-20 mA signals *Discharge Countdown Ratio of 1:250 *Suitable for single phase power supply of 230V (C).
